Tips:

1.Please select the plug type carefully before purchasing.
2.Please fully understand the product before purchasing.

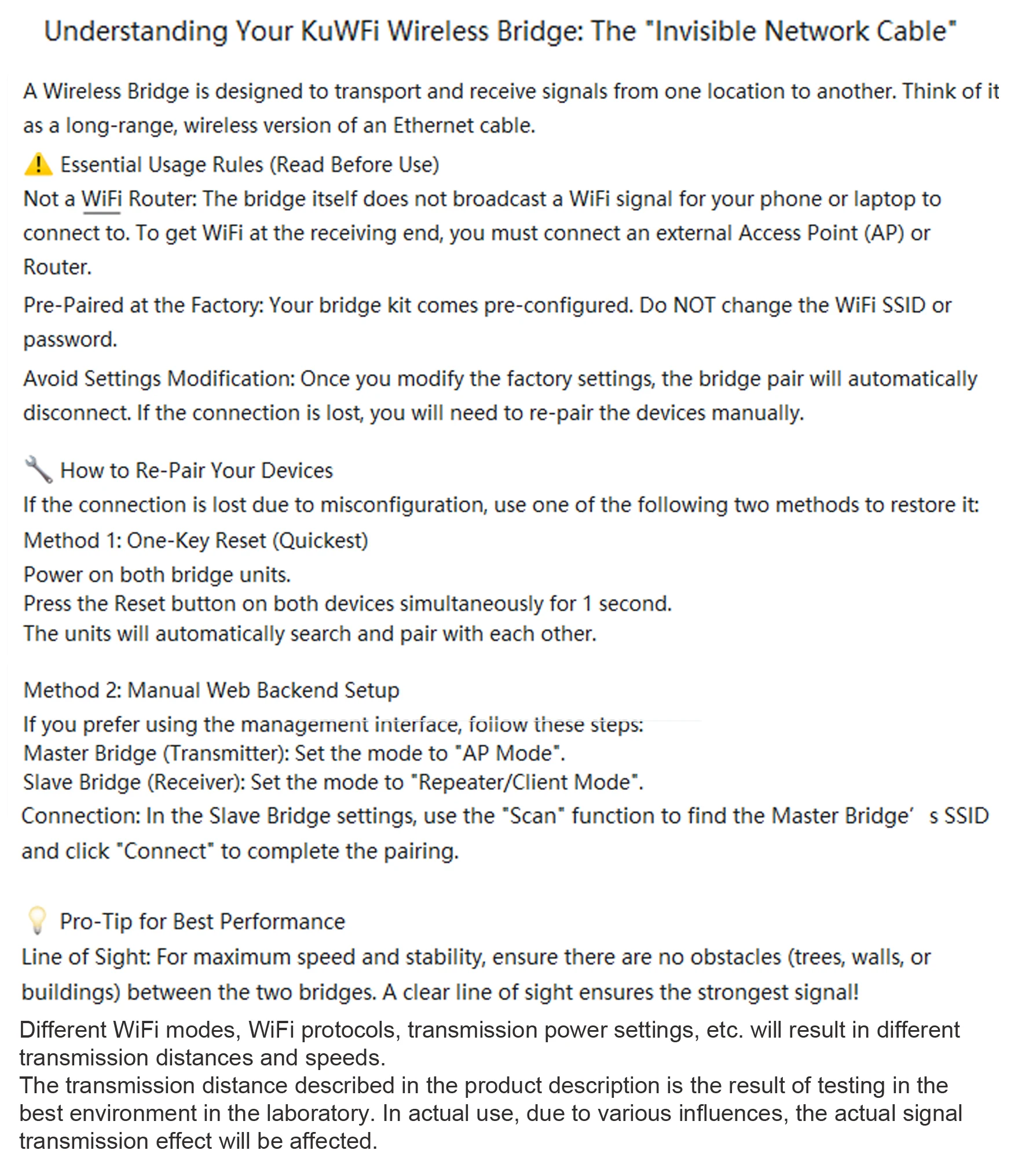

3.About this CPE Bridge:

1) Professional & Technical:

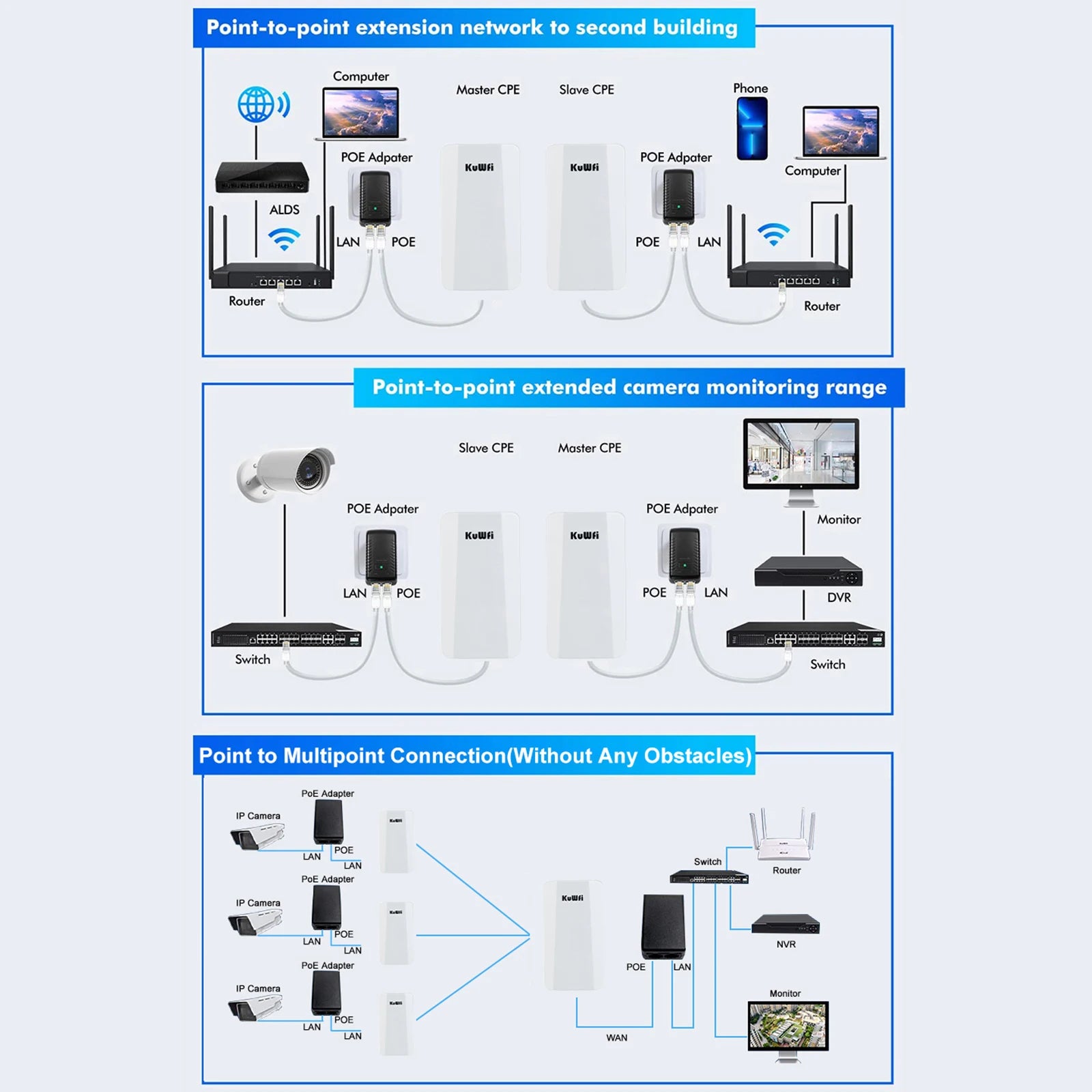

The primary function of a wireless bridge is to establish a dedicated, high-speed link between two points for data transmission. It does not broadcast a Wi-Fi signal itself. Instead, it receives and seamlessly bridges the network connection to an external outdoor Access Point (AP). This AP then provides the Wi-Fi coverage. This design minimizes signal loss over distance, ensuring optimal performance and a reliable connection at the remote location.

2) Easy-to-Understand:

Think of a wireless bridge as a dedicated data pipeline. Its only job is to wirelessly carry your internet signal from one place to another with minimal loss. It doesn't create Wi-Fi itself. At the other end, it connects to an outdoor Access Point (AP), which takes that strong signal and broadcasts it as a powerful Wi-Fi network.

This teamwork ensures you get the best possible signal strength where you need it.

FAQ:

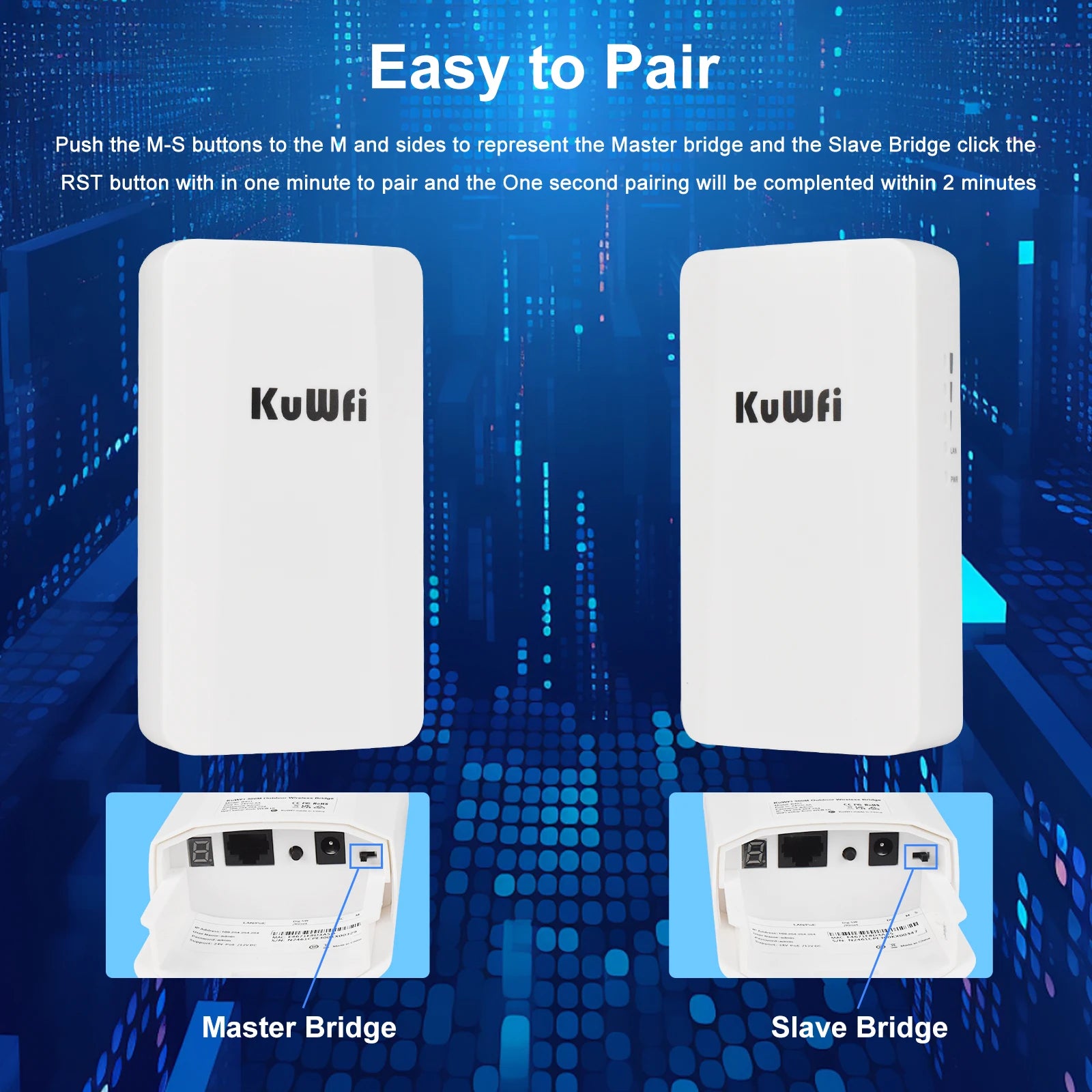

Q1: How to pair Bridges?

A1: If you need to expand the wifi signal, you must first pair the two Bridges and then secure them to the designated place.Set one of the Bridges as the Master Bridge and move the switch on the bridge to the "H" end.The other Bridge is set as the Slave Bridge, and the switch on the bridge is moved to the "C" end.
Then you need to press the "RST" button of both Bridges at the same time for one second, and the Bridges will automatically pair.

Q2: i can not log in web ui page for the bridge?

A2: If you need to manage the bridge, you can use a computer wired connect or smartphone wifi connect to the bridge.Then set a static IP address for the network to access the WEB UI page.

You can set static ip address type 169.254.254.20 and Subnet mask type 255.255.255.0.
And then you can log in web ui page 169.254.254.254 in browser.
Since the static IP address is set only to change the bridge Settings, restore the original IP Settings after the setting is complete. Otherwise you won't be able to access the Internet.

Q3: Outdoor wi-fi bridge is less than described distance?

A3: The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach described distance.

Q4: The bridge Wi-Fi signal is weak or the transmission distance is short?

A4: Adjusting the wifi protocol and bandwidth of the bridge will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.

Q5: Does the bridge support 360-degree signal transmission?

A5:The bridge uses panel antennas, so it does not support 360-degree transmission. It is recommended that when installing, the two Bridges are face to face, which can improve the stability of Wi-fi signal transmission.

Q6: Can't find a Wi-Fi signal?

A6: Since each country supports different Wifi channels, I suggest you log into the WEB UI page to change the region of Wifi signal or use another channel.

Product Description

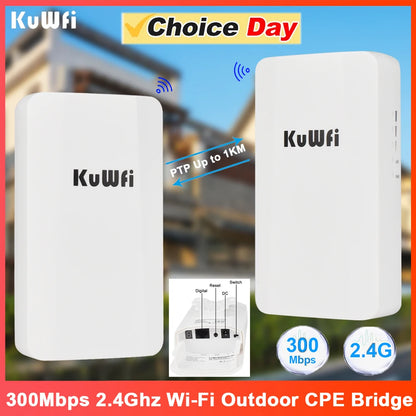

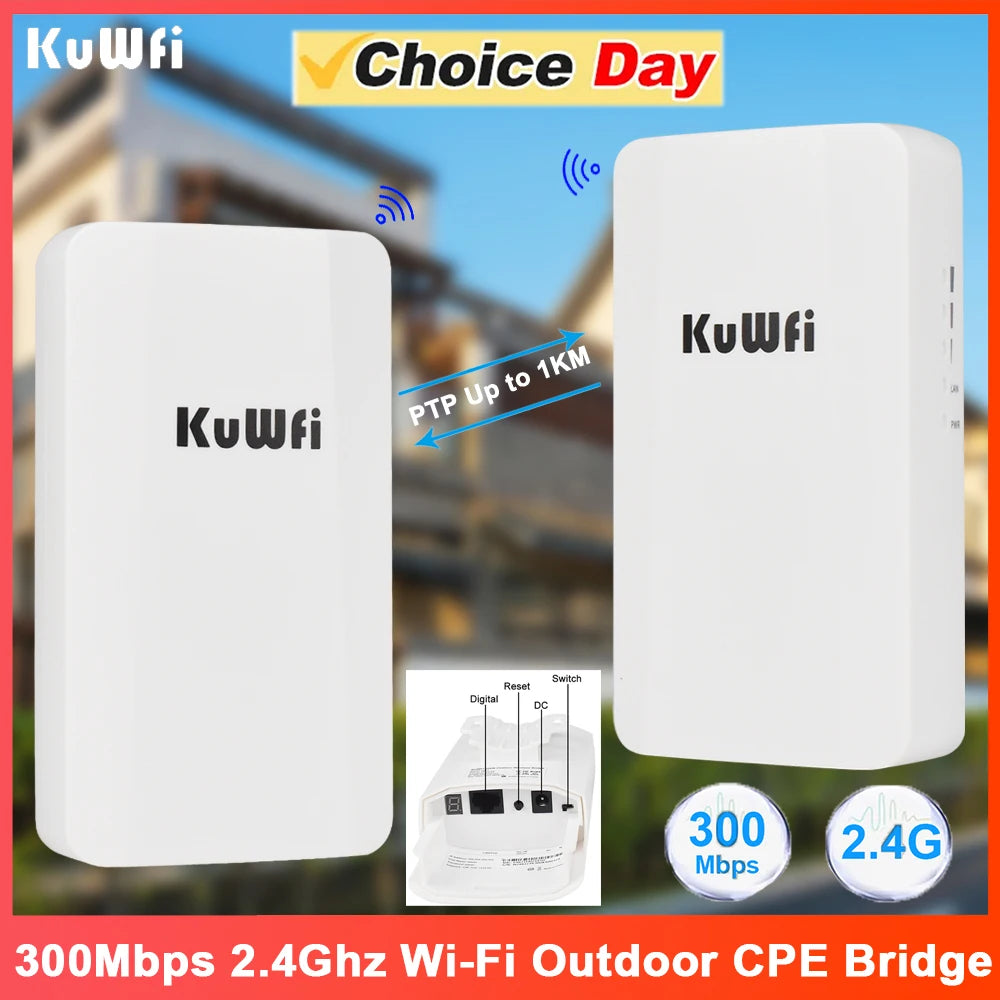

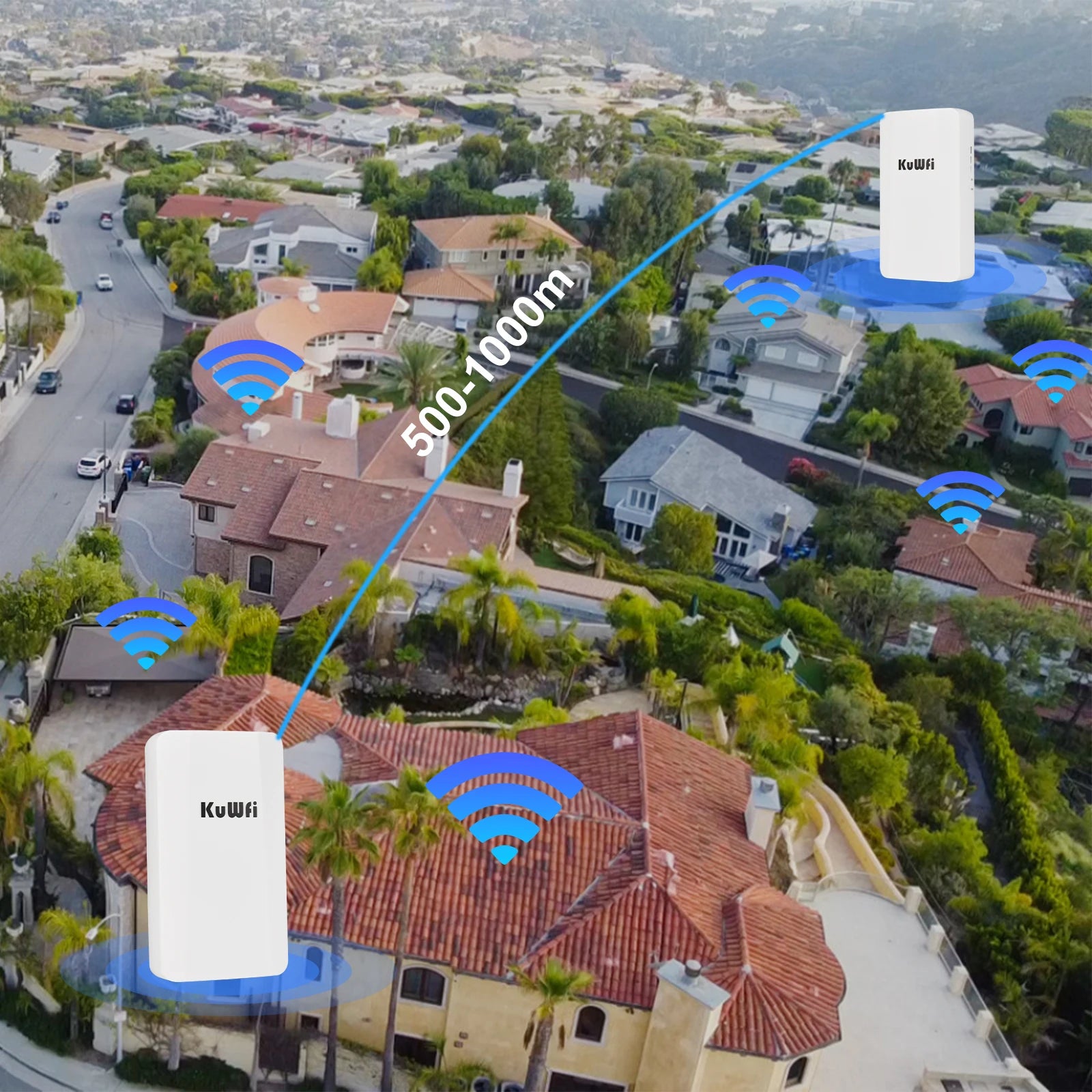

1.High speed ,up to 300mbps data rate power and 500-1000m long-range coverage

2.KuWFi outdoor AP single-frequency outdoor CPE works in the 2.4GHz frequency band, supports 300Mbps AP, reepater functions, can access more wireless clients.

3.KuWFi outdoor AP uses dustproof and waterproof shell, all-weather sunscreen, waterproof, dustproof seal design can be used in various outdoor Working in the environment.

4.KuWFi outdoor AP also supports PoE remote 100M network cable power supply and DC power supply mode, convenient management, --

5.support digital display pairing information for remote pairing
KuWFi outdoor AP two unit work at the same time and LED show same digital number,mean have paird.

Product Detail

Chipset: MTK 7628KN 300Mbps
Flash: 1MB
RAM: 8MB
Transmission Rate: 2.4GHz,wifi rate up to 300 Mbps
Modulation mode: OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Output Power:
802.11n: @MCS7:12±2DB, @MCS0:14±2DB
802.11g: @54M:13±2DB, @6M:15±2DB
802.11b: @11M:15±2DB, @1M:17±2DB
Receiving sensitivity:
802.11n: -70dbm@MCS7, -88dbm@MCS0
802.11g: -72dbm@54Mbps, -88dbm@6Mbps
802.11b: -85dbm@11Mbps, -94dbm@1Mbps
EVM
802.11n: ≤-28 DB
802.11g: ≤-25 DB
802.11b: ≤-10 DB
Frequency offset ±20ppm
Interface: 1x 10/100M adaptive WAN port (POE 24V 0.5A)
Support Power supply:POE 24V 0.5A or DC 12V-24V/1A(Package Not Include)
Support Mode: AP mode and reepater mode
Reset button: Long press to reset, short press to debug digital display plus or minus
Status Indicator: POWER LED,WAN LED,LAN LED,LINK LED

Package List:

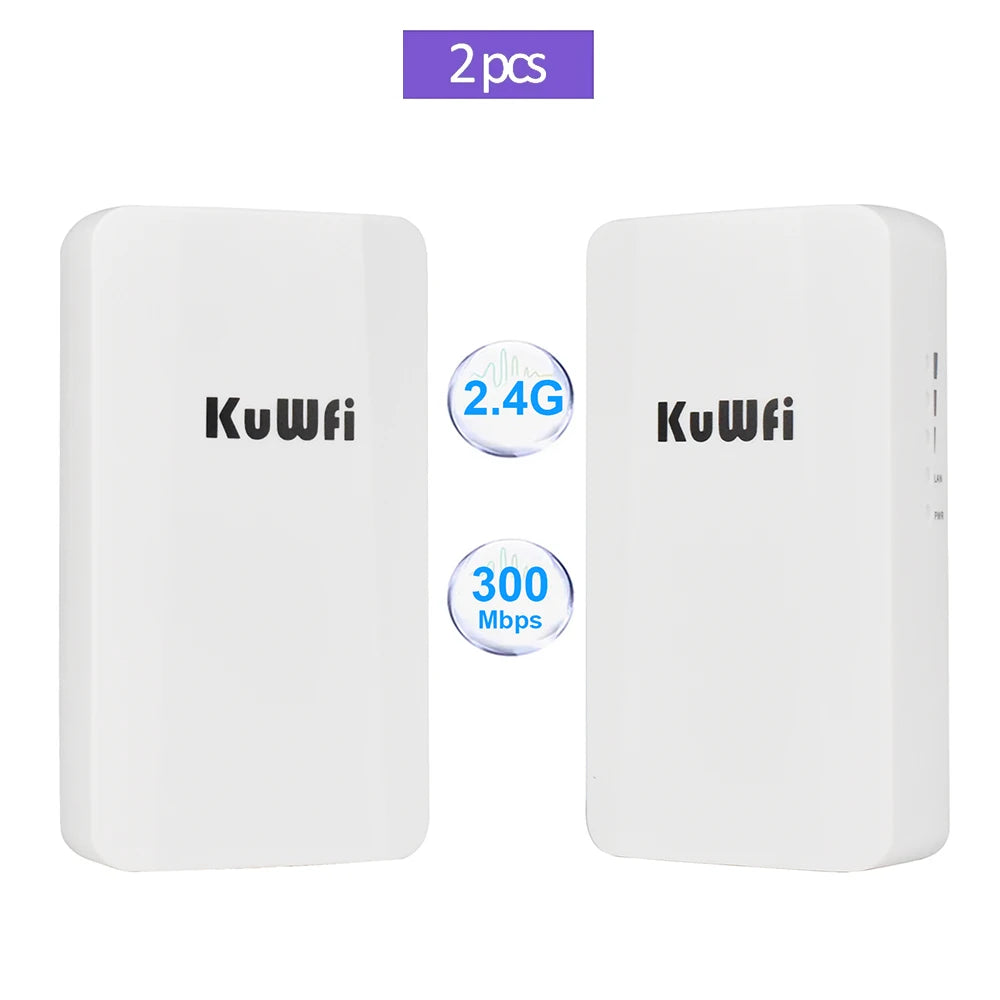

2x CPE Bridge
2x POE Power Supply
2x Network Cable
1x Manual
