DIY Kit 8X8X8 3D Cube RGB LED Flashing Light Bluetooth Audio Spectrum Display Power Amplifier Remote Control DC 5V

NTOE:

This DIY installation is more difficult to be installed, please be patient until the installation is complete!!!

It is strongly recommended to browse the installation manual before starting installation!!!

Introduction:

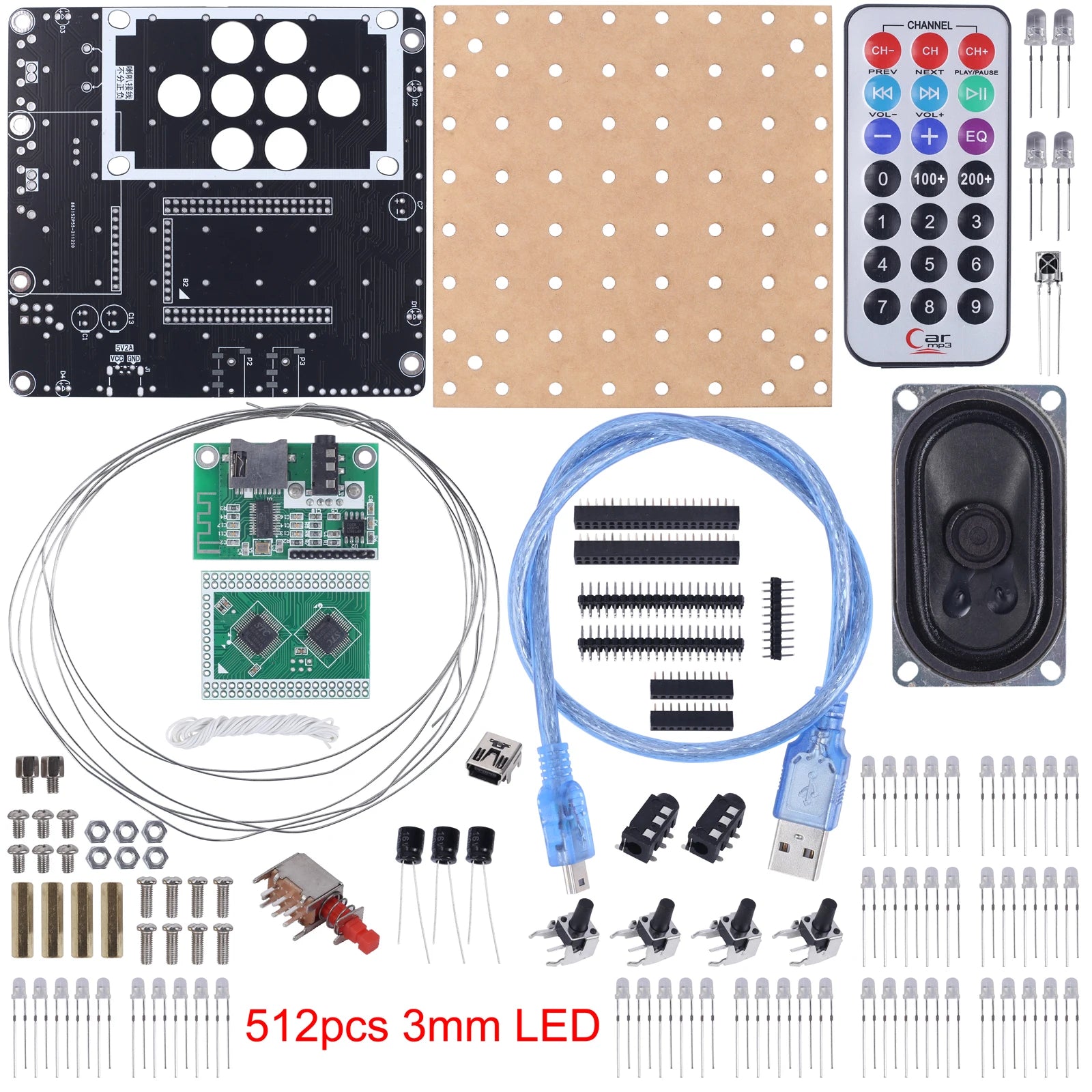

This is a light cube DIY kit that you need to weld and assemble by yourself. The bottom plate comprises a circuit board and component parts. The 512 LED lights make up a stereo space. A variety of cool model showing a three-dimensional effect. It's better to watch in the night.

Feature:

1>.Strong Bluetooth multimedia control

2>.Support MP3 decoding function

3>.Wireless control

4>.Multiple audio input

5>.MINI USB provide power supply

6>.Multi-play display mode

7>.Perfect simple circuit

8>.Rich external interface

Parameter:

1>.Model:3D 8 Light Cube

2>.Work Voltage:DC 4.2V-5.5V

3>.Work Current:100mA

4>.Power Type:MINI USB

5>.Control Type:Infrared Remote Control + Button Control

6>.Music Type:Bluetooth/U-disk/TF Card/Audio Input

7>.Work Temperature:-40℃~85℃

8>.Work Humidity:0%~95%RH

Function:

1>.RGB LED light color changes automatically

2>.Bluetooth Audio control

3>.Infrared remote control

4>.Button Control

5>.Bluetooth audio mode

6>.U-disk audio mode

7>.TF card audio mode

9>.Audio signal input mode

10>.Built-in 3W amplifier

11>.Adjustable animations flashing speed

12>.One comprehensive animation

13>.Multiple animations(more than 50kinks)

14>.Adjustable spectrum sensitivity

15>.One comprehensive spectrum mode

16>.Multiple spectrum modes(more than 10kinks)

17>.Switch memory function

18>.Music switch control

19>.Support audio output

20>.Adjust volume

21>.Automatic control mode

Frequently Asked Questions:

1>. Why some of the LED in the same layer or in the same column can not be bright?

Q:The pin is not soldered firmly or missing.Please check out the soldered pins and fix them again

2>. Why a column or a layer is not bright?

Q:Please refer to the schematic, find the corresponding chip, re-soldering the pin, the chip may be pin soldered or unsoldered.

Installation Notes(Please be patient install! !)

This DIY installation is more difficult to be installed, please be patient until the installation is complete.!!!

It is strongly recommended to browse the installation manual before starting installation!!!

1>.User needs to prepare the welding tool at first.

2>.This DIY installation is more difficult to be installed, please be patient until the installation is complete.

3>.The package is DIY kit.It need finish install by user.

4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.

5>.Pay attention to the positive and negative of the components.

6>.Users can complete installation by PCB silk screen and component listing.

7>.User must install the LED according to the specified rules.Otherwise some LED will not light.

8>.Install complex components preferentially.

9>.Make sure all components are in right direction and right place.

10>.It is strongly recommended to read the installation manual before starting installation.

with case

No case
