Features:
1.100% brand new and high-quality products.
2.Made of high-quality materials, durable and practical.
3.Small size and simple application.
4.Efficient and stable performance, long working life.
5.Wide application range.

Parameters:
Dynamic mode: 8 modes
Dynamic speed level: 10 levels
Lighting brightness level: 10 levels
PWM level: 256 levels
Smooth dimming effect: Yes
Working voltage: DC 5~24V
Output current: 12A peak
Remote control mode: RF wireless
Remote frequency: 433.92MHz
Remote control distance:>15 meters in open areas
Battery type: 3V CR2025 (shipped without battery)

Install RF wireless remote control
1.Power supply
This machine can use a DC 5V to 24V power supply. The red cable should be connected to the positive and the black cable to the negative.
Please select the appropriate power supply based on the LED application.
2.LED output
The red cable should be connected to the positive pole of the LED, and the black line should be negative. The peak output current is 12A, please reduce the load if the host overheats.
Attention: Please do not short-circuit the LED output, as this may cause permanent damage!

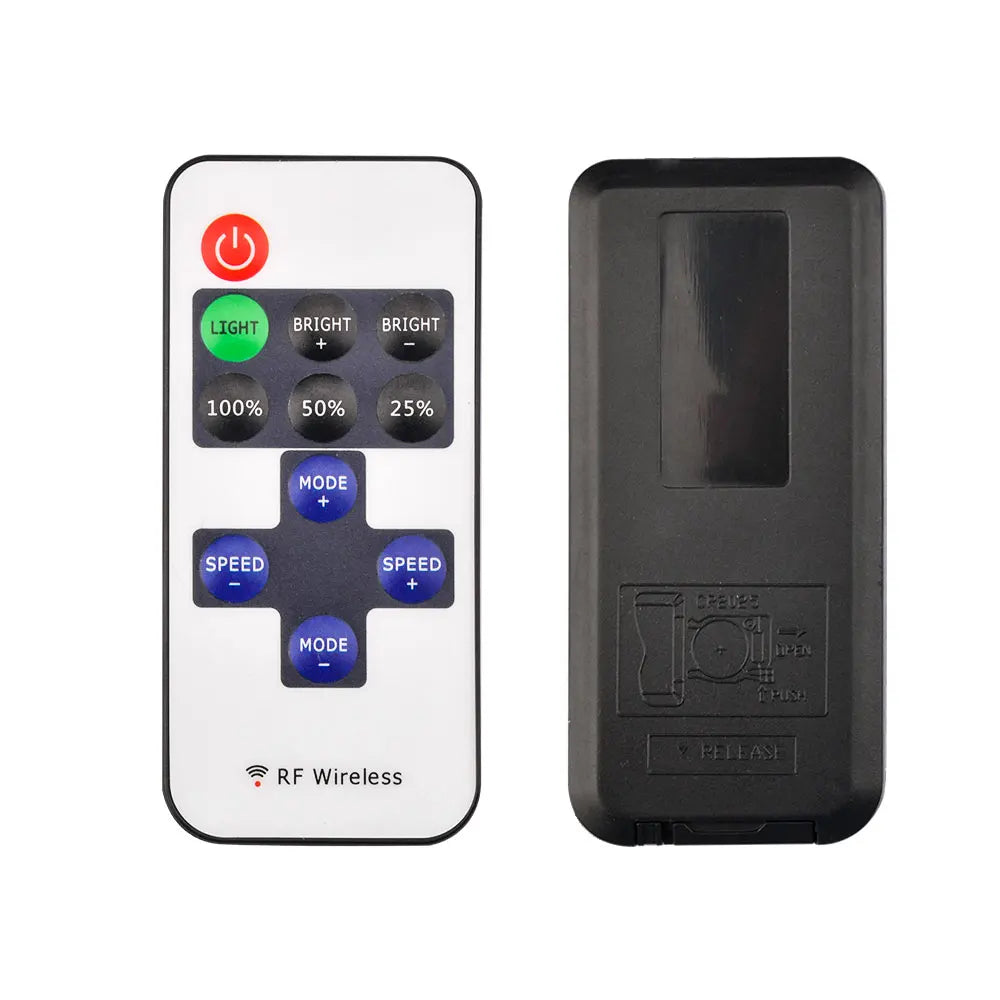

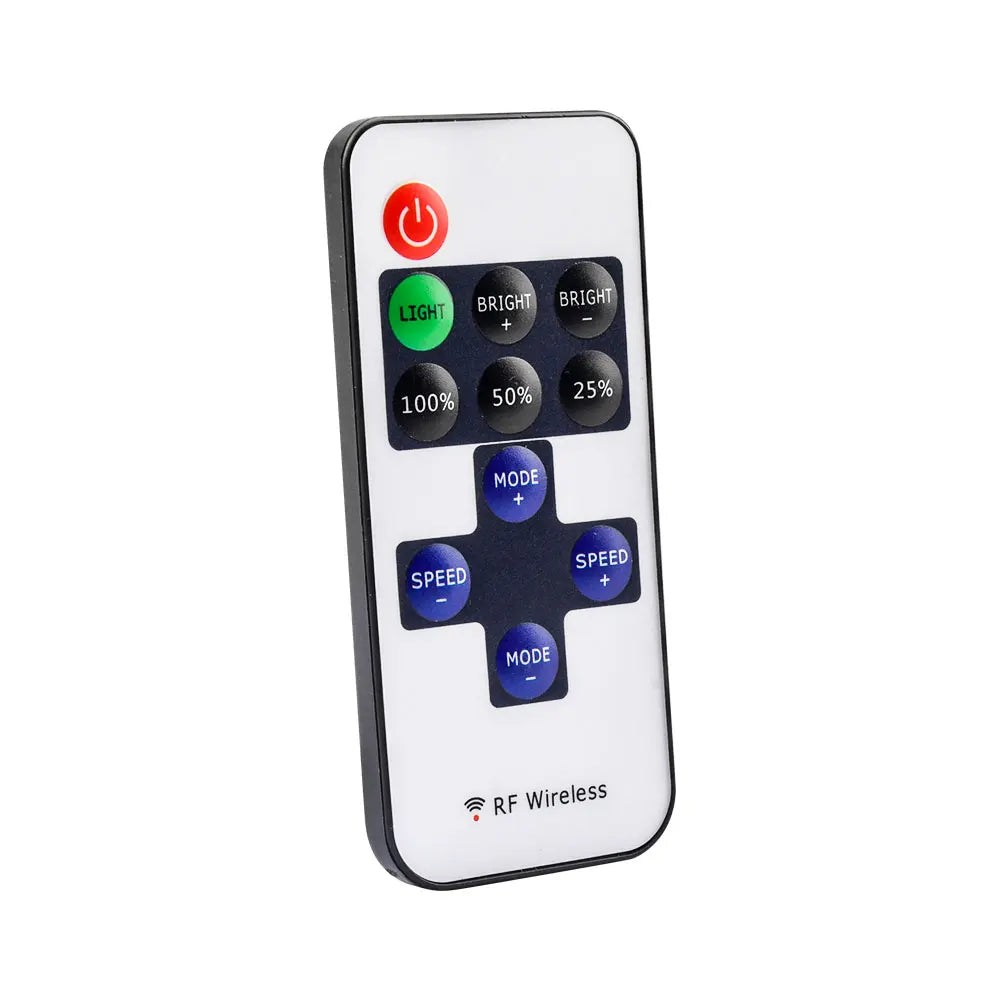

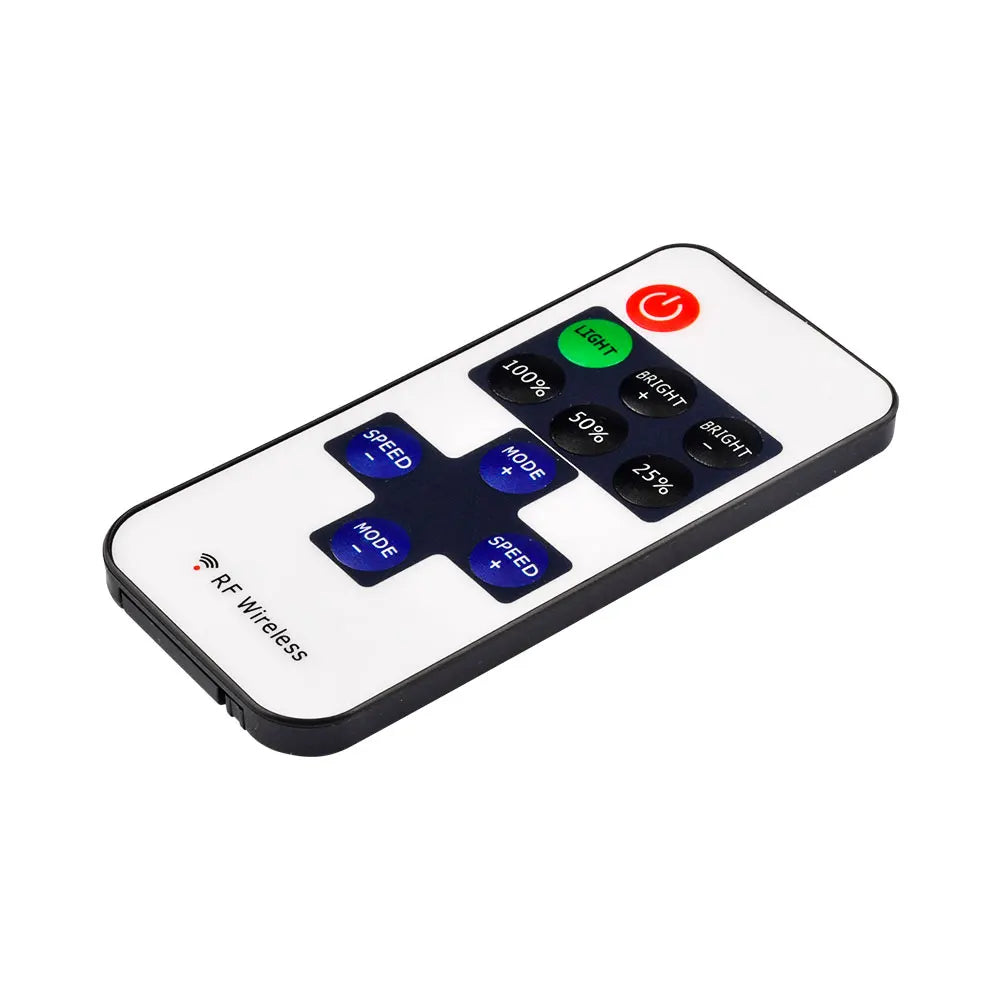

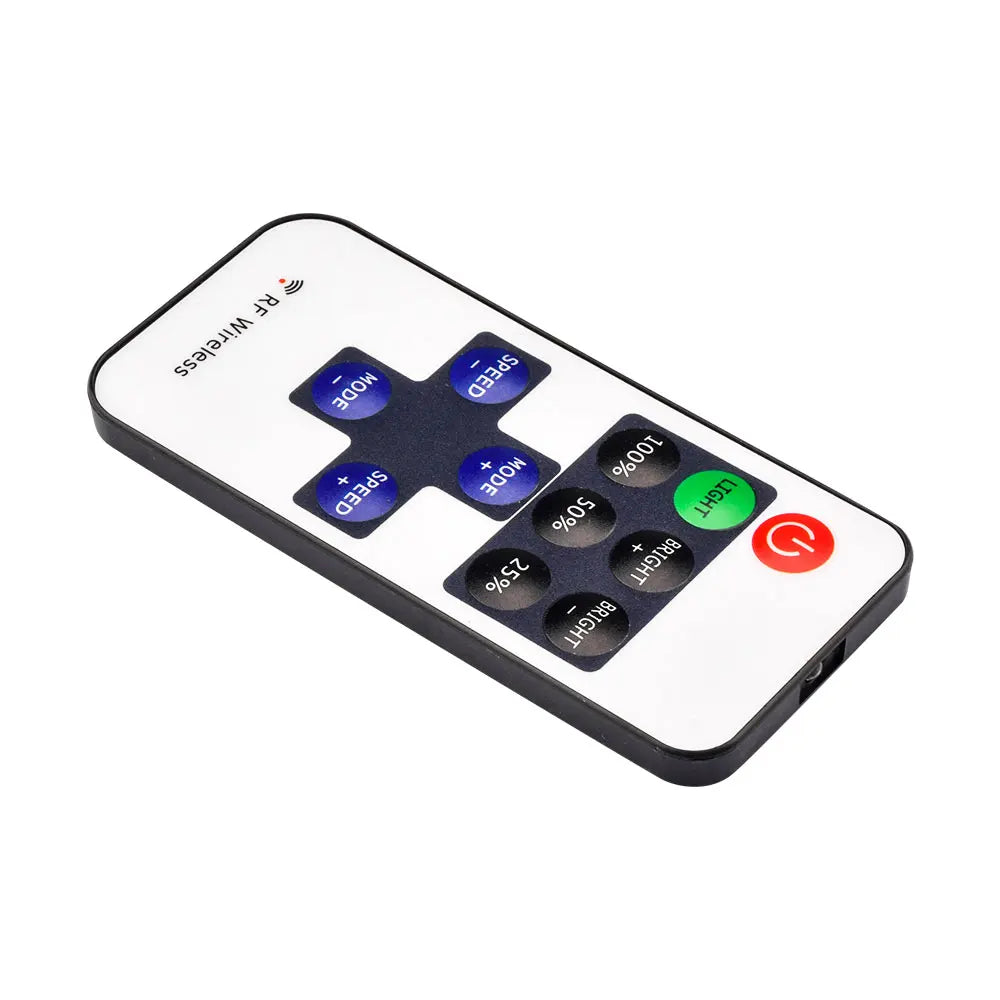

3.Remote control
Please pull out the insulation before use. Radio frequency wireless remote control signals can pass through obstacles, so it is not necessary to target the main unit during operation. In order to receive remote signals correctly, do not install main equipment in enclosed metal parts.
Note: Remote battery 3V CR2025 model (not included)

Package include:
1 x DC 5-24V LED Strip Controller Mini Dimmer RF Wireless Remote Controller For LED 5050 2835 Strip Single Color
